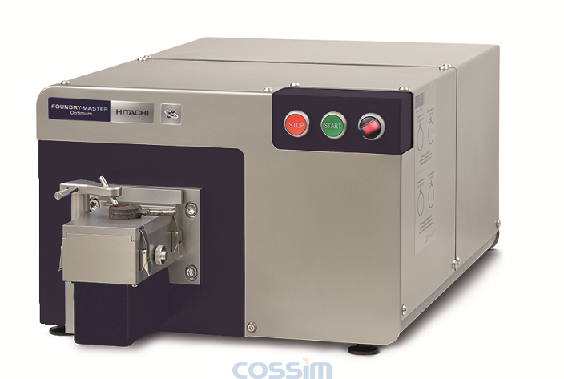

日立(牛津)FOUNDRY-MASTER Optimum全譜火花直讀光譜儀 儀器適用于鐵、鋁、銅、鎳等金屬樣品的成分分析
SKU: FOUNDRY-MASTER Optimum |
產品介紹
- 儀器名稱：全譜直讀光譜儀
- 儀器型號：FOUNDRY-MASTER Optimum
- 產地：德國
- 供貨期：8周
儀器應用范圍
儀器適用于鐵、鋁、銅、鎳等金屬樣品的成分分析，根據客戶的具體要求，本銷售協議所對應的儀器的分析范圍為鐵基和鋁基。
技術參數
| |
FOUNDRY-MASTER Optimum全譜直讀火花光譜儀 |
| 序號 |
數量 |
描述 |
| 1 |
1 |
FOUNDRY-MASTER Optimum (FMO) 全譜直讀火花光譜儀
High performance laboratory spectrometer, patented optical design, wavelength range 172-420 nm plus optical coverage for important lines like (Cu, Na, Li) up to 671nm
高性能的實驗室光譜儀，專利的光學設計，波長范圍172-420 nm，最大波長范圍可達671 nm（用于Cu、Na、Li等元素的分析） |
| Standard laptop 標準筆記本電腦 |
Functions of Spectrometer Software (WASLAB user interface)
中、英、德文操作分析功能軟件（WASLAB 用戶界面功能） |
| 2 |
1 |
Fe-matrix program 鐵基程序
Calibration of Fe-matrix, incl. all standard elements 鐵基曲線包含所有標準元素 |
| 3 |
7 |
Sub-programs Fe-matrix 鐵基子程序
Calibration of sub-programs: Fe low alloy, free cutting steel, cast iron, Cr-hard Ni-resist, stainless steel, tool steel, High Mn steel
子程序：低合金鋼，易切削鋼，鑄鐵，高鉻鎳合金，不銹鋼，工具鋼，高錳鋼 |
| 4 |
1 |
Sub-programs Fe-matrix 鐵基子程序
Calibration of sub-programs: stainless steel + N
子程序：含N不銹鋼 |
| 5 |
1 |
Al-matrix program鋁基程序
Calibration of Al- Matrix, incl. all standard elements
鋁基曲線包含所有標準元素 |
| 6 |
6 |
Sub-programs Al-matrix鋁基子程序
Calibration of sub-programs: Al low alloy aluminum, Al-Cu alloys, AL-Mg alloys, AL-Si alloys, AL-Si-Cu alloys, AL-Zn alloys
子程序：低合金鋁，鋁-銅合金，鋁-鎂合金，鋁-硅合金，鋁-硅-銅合金，鋁-鋅合金 |
| 7 |
1 |
Cu-matrix program 銅基程序
Calibration of Cu-matrix, incl. all standard elements
銅基曲線包含所有標準元素 |
| 8 |
8 |
Sub-programs Cu-matrix銅基子程序
Calibration of sub-programs: Low alloy copper, Be-Co alloy, Cu-Zn brass, Cu-Sn-Pb bronze, Cu-Sn-Zn-Pb gunmetal, Cu-Ni white copper, Cu-Zn-Ni alloys, Cu-Al alloys
子程序：低合金銅，鈹-鈷銅合金，黃銅，青銅，白銅等等 |
| 9 |
1 |
Ni-matrix program鎳基程序
Calibration of Ni- Matrix, incl. all standard elements
鎳基曲線包含所有標準元素 |
| 10 |
1 |
Set of wire adaptors complete for FMO 線材適配器（選配）
Set of adaptors to measure wires on curvature and on forehead
適配器用于測試線材曲面和端面 |
| 11 |
|
Transportation / shipping case 運輸箱
Trolley made of unbreakable and long lasting HDPE material
手推車是用堅固耐用的超強塑料材質制作的 |
| 12 |
1 |
GRADE Database牌號數據庫（選配）
It offers more than 8 million records for over 220,000 materials from 67 countries and standards
它能提供67個國家和標準中超過22萬種金屬材料的800萬條記錄 |
| 13 |
1 |
隨機附件包 |
包裝清單
| FMO隨機附件包 |
| Service Flyer (English)服務宣傳單 |
1 |
| assortment case分類箱 |
1 |
| premium USB cable A-B, 1.8 m, with snap ferrite帶磁環的USB連接線 |
2 |
| premium USB cable A-B, 2.0 m USB連接線 |
1 |
| snap ferrite磁環 |
1 |
| electrode cleaning brush電極刷 |
1 |
| assembly extraction tool ceramic insert陶瓷座的拔出工具 |
1 |
| cleaning brush短直柄毛刷 |
1 |
| hexagon screwdriver with T-handle SW 2 T形內六角螺絲刀 |
1 |
| fuse 6.3 A, 20 mm T保險絲 |
10 |
| tungsten electrode鎢電極 |
1 |
| electrode cleaning brush, round電極刷 |
2 |
| Swagelok union nut鎖緊螺母 |
2 |
| Swagelok locking ring set (front + rear)卡環套件 |
3 |
| M4x4 galvanised Allen set screw定位螺釘 |
5 |
| compression spring彈簧 |
2 |
| O-ring 8 x 1 mm密封圈 |
5 |
| rubber bump stop橡膠緩沖塊 |
3 |
| angle Allen key SW 2內六角扳手 |
1 |
| mouse, 3 buttons, USB port鼠標 |
1 |
| Rittal spare filter mat過濾墊備 |
1 |
| Allen key SW 2.5內六角扳手 |
1 |
|
